  1. Layout
  2. Sheets

Sheet Content

What content do Sheets contain?

PreviousSheetsNextAdding and Editing Content

Last updated 1 year ago

Line Groups and Line Items

, and are all added to Sheets via and .

Line Items

Line Groups

Dashboards

All Variables, Assumptions and Metrics in your Layout are represented by a Line Item. As shown in the screenshot above, when a Variable or Metric has a applied (the Variable Gym members in the example), you only need to add a single item to the Layout for all child items, and the summary line, to be generated in the Excel.

Each must be a child of a Line Group. Line Groups can be added to other Line Groups in a tree-like structure, and numbering will be automatically added, as in the example screenshots above.

Dashboard Sheets contain a reference to a single . In the , if you select the Dashboard Sheet type, you will be shown a step in which you can choose a Dashboard to display. Only one Dashboard can be shown on any single Sheet.

Dimension
Line Item
Variables
Assumptions
Metrics
Line Groups
Line Items
Dashboard

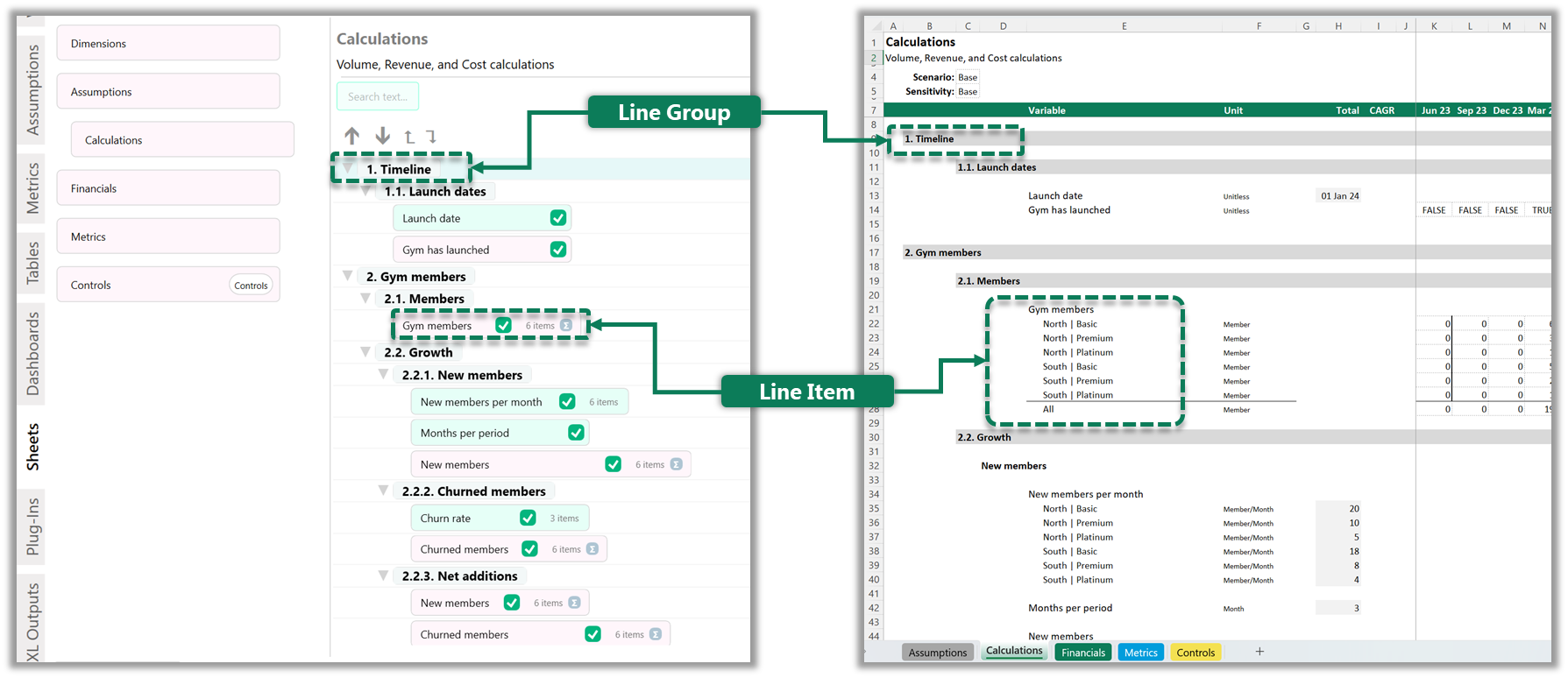

Line Groups and Line Items in Models (left) and Excel (right)
Sheet wizard
