Adding and Editing Content

How to edit Sheet content

PreviousSheet ContentNextExcel Formatting

Last updated 1 year ago

Adding Line Items

Adding from item lists

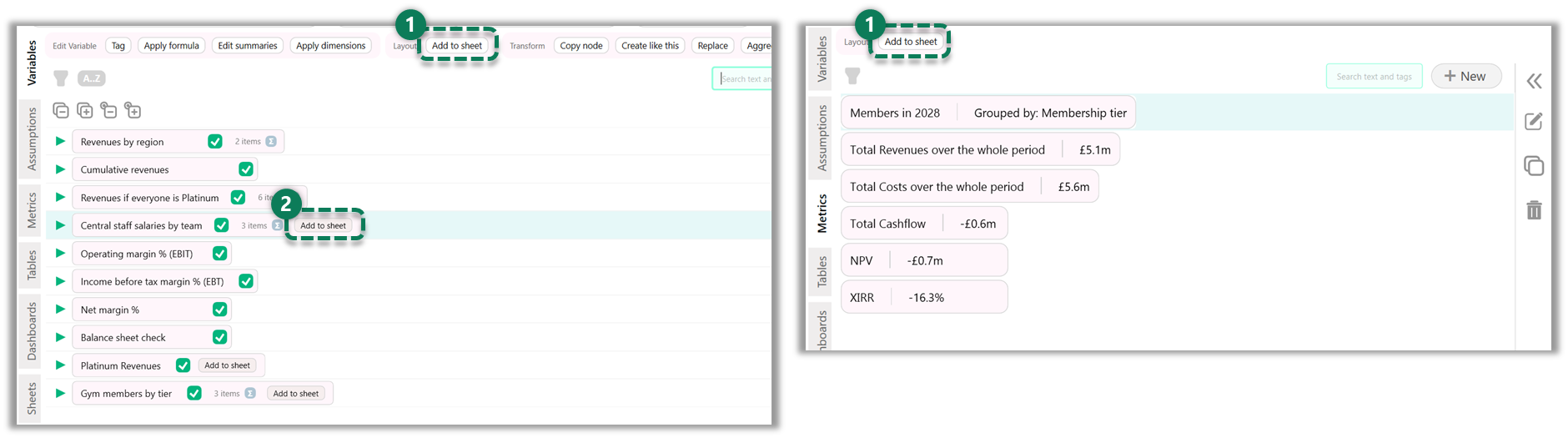

From any , and list, you can add items directly to the Layout, as shown below. An Add to layout button will appear (1) when any items are selected. An Add to sheet button is also available on the Variable itself (2) - this button will only be shown if the Variable has not been added to the Layout yet.

The Sheet step will only show Sheets of the correct item type. If you add a new Sheet here, it will automatically be of the correct type.

Show/Hide Layout buttons

If you do not want to see Add to sheet buttons on the Variables themselves, you can hide them from the Menu, by navigating to View > Show Layout buttons, as shown below.

Adding in the Sheet preview

From any Sheet preview, as shown in the screenshot below, you can add items to a Line Group by selecting the Line Group and pressing the Add items button.

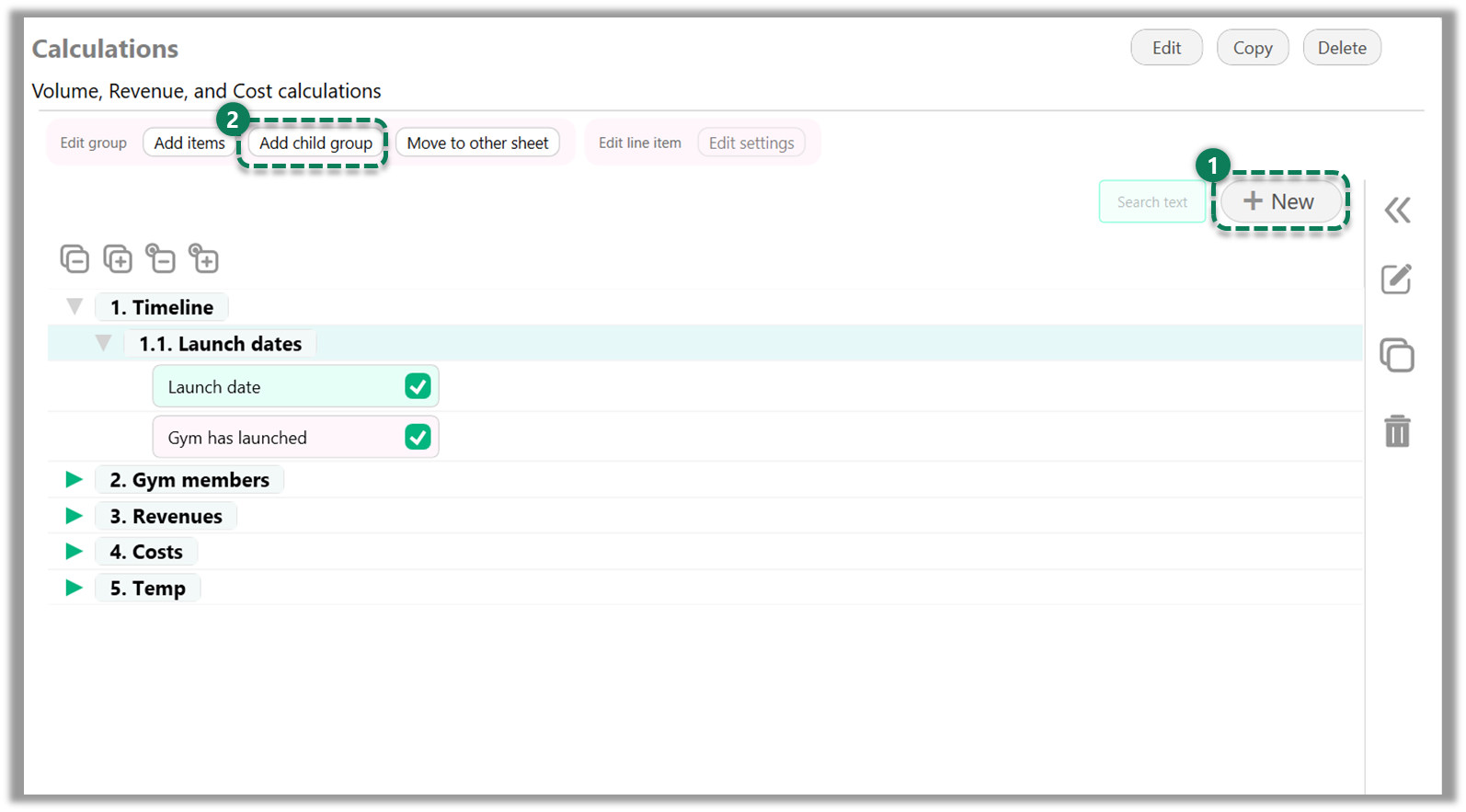

Adding Line Groups

From any Sheet preview, as shown in the screenshot below, you can add Line Groups by pressing the New button (1) - this will add a new Line Group to the bottom of the Sheet. If you select an existing Line Group, you can add a child Line Group directly, by pressing the Add child group button (2).

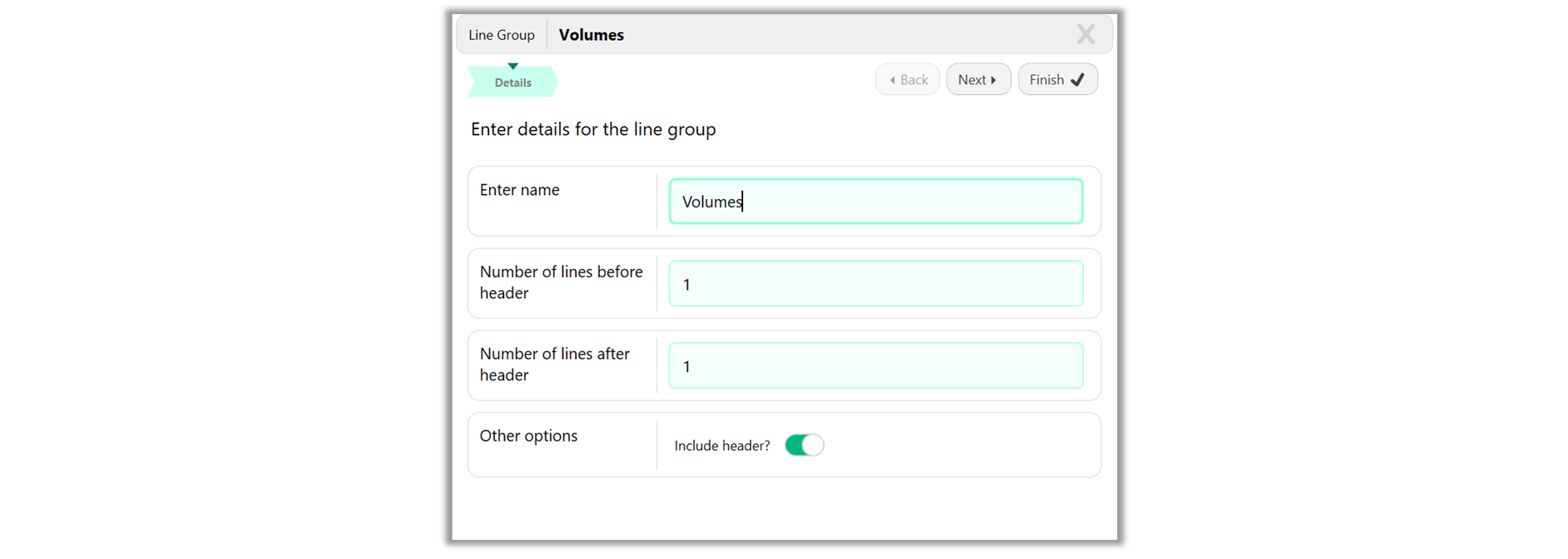

The Line Group wizard

The Line Group wizard, as shown in the screenshot above, allows you to enter a Name and some formatting options, as follows:

Number of lines before/after header

Changes the number of blank lines inserted into the spreadsheet before and after the Line Group heading

Include header?

Specifies whether to include the header in the generated spreadsheet. In this way, you can use Line Groups to create custom spacing between items, without displaying a header.

Editing in the Sheet preview

Drag and Drop

The Sheet preview supports drag and drop to move single or multiple Items and Line Groups.

Line Group level controls

When you hover over a Line Group, as shown in the screenshot below, buttons will appear that can be used to promote/demote the Line Group between levels.

Item Previews

A full preview for any Sheet item (Variables, Assumptions, Metrics and Dashboards) can be seen by selecting that item in the Sheet preview. Editing the item from the Sheet preview will open a full editing wizard for that item, so you can make changes without needing to navigate away.

Pressing one of these buttons will open an Add Item to Layout wizard, as shown in the screenshots below. Select a (1), and a to add the items to (2). Line Groups can be added and edited as desired in the Line Group step.

Variables
Assumptions
Metrics
Sheet
Line Group
Add to sheet buttons in the Variables and Metrics tab4
Add Item to Layout wizard
Show Layout buttons toggle
Adding items from the Sheet preview
Adding Line Groups
The Line Group wizard
Promote / demote controls
Screenshots showing Add to Sheet buttons in the Variables view (left) and Metrics view (right)
Screenshot of a Sheet preview, with the Add Items to LineGroup button highlighted
Screenshot of a Sheet preview highlighted the New LineGroup button and the "Add Child Group" button
