Variable Setup

How to create and configure a Variable

The items on this page can all be configured on the Name and Setup step of the Variable dialog.

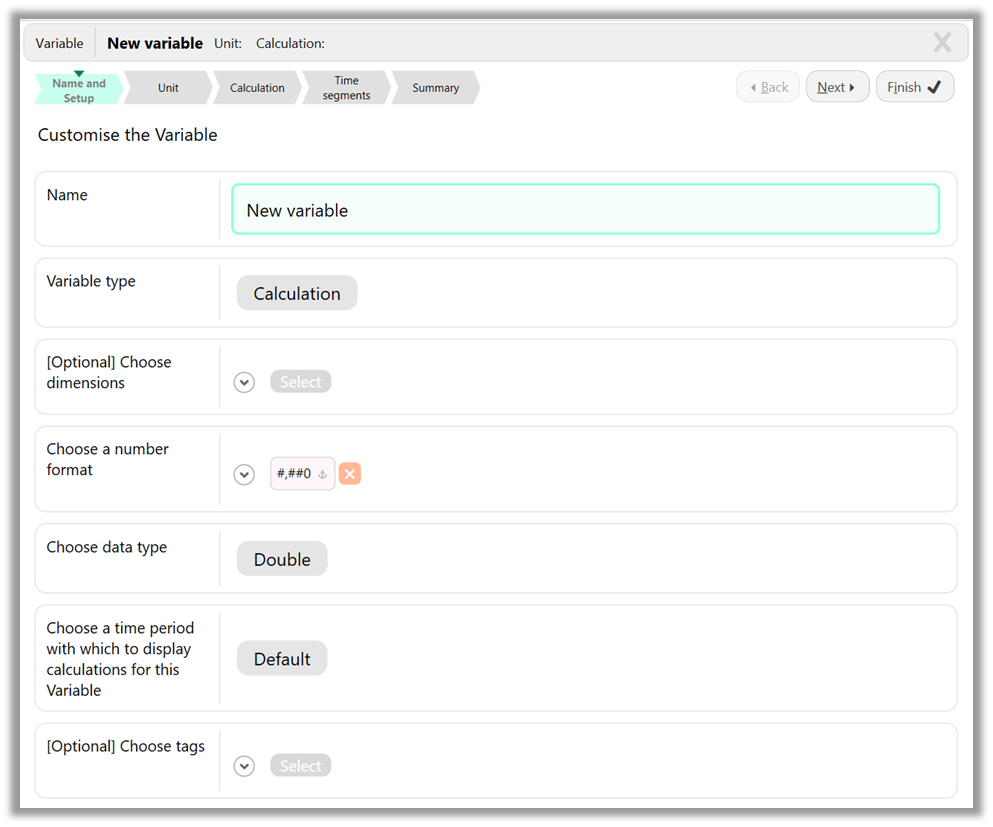

A screenshot of the Setup step of the new Variable dialog, containing several steps
Variable dialog | Name and Setup step

Name

There are no restrictions to how you name your Variables, as long as the name isn't blank. Make them as readable and self-explanatory as possible and thank yourself later!

Bear in mind that if you will be generating Excel from your Model, Variable names will be written in the spreadsheet, meaning you should avoid choosing a name that Excel will interpret as a formula, otherwise you will run into problems. But if you really want to start a name with an "=", we won't stop you.

Variable type

There are three types of variables in Models:

  1. Assumption

  2. Calculation

  3. Aggregation

The Variable type you choose determines the default way that the Variable will calculate its value. Variables can calculate values from both Assumptions and Calculations in different periods of the model by using Time Segments. See the dedicated help section on Time Segments for more details. Aggregation Variables must calculate value via aggregation for the entire model period.

Assumption Variables

Assumption Variables are usually the starting point of your Model. They reference the basic inputs, called Assumptions, that underpin your Model's calculations. Read more on how Assumptions work here, and how to reference them from your Variable here.

Calculation Variables

Calculation Variables obtain their values by referencing other Variables and performing a calculation. e.g. Profits = Revenues - Costs.

Read more about Calculations here.

Aggregation Variables

Aggregation allows you to bring values from several separate Variables together into a single Variable.

Read more about Aggregation here.

Dimensions

Select any Dimensions that you want to apply to your Variable. Dimensions allow you to work with a collection of items without having to repeat calculations.

For example, a Dimension might be:

  • Widget Model | Model A, Model B, and Model C

or

  • Sales Region | North, East, West, and South

Dimensions are extremely powerful, time-saving, and improve the quality of your Models. Read more about how to use Dimensions here.

Number Format

A Number Format determines how the calculated values for your Variable will be displayed. You can choose from inbuilt Number Formats or create your own. Any Assumptions you create from within the Variable will use the same Number Format by default.

Read more about Number Formats here.

Data Type

Models works with several Data Types, which affect how values are treated in calculations.

These include Data Types for working with numerical values, text values, date-time values and others.

Read more about the different Data Types and how to work with them here.

Validation Dimension

The Validation Dimension step will only appear if you select the Validation Data Type. Validation allows you to select inputs from a list of values.

For instance, a Variable called Include tax? may be an Assumptions Variable where you want to choose between Yes/No options. To achieve this, select the Validation Data Type, and then select the inbuilt Yes/No Option Dimension in the Validation Dimension step.

The Validation chosen here will be applied to any Assumptions created from this Variable. You can use any Dimension for Validation.

Time Period

You may want to see outputs from your Model on a different timescale to that defined in the Model Timings.

For instance, for a Model built on a Monthly basis, you may want to see outputs in Quarters or Years

How Models calculates the value for each aggregated period depends on the Unit of the Variable. Balance Variables will calculate the value at the end of the period, and Flow Variables will sum the values of intervening periods. Read more about Balance and Flow concepts in the Units documentation.

If you select a Time Period other than Default, your Variable will automatically be a Calculation Variable, and you will not be able to edit Time Segments.

Tags

You can Tag Variables just like any other taggable item in Taglo software, which will allow you to filter the list of Variables by those Tags.

Read more about Tags and tagging here.
